一、实验架构设计

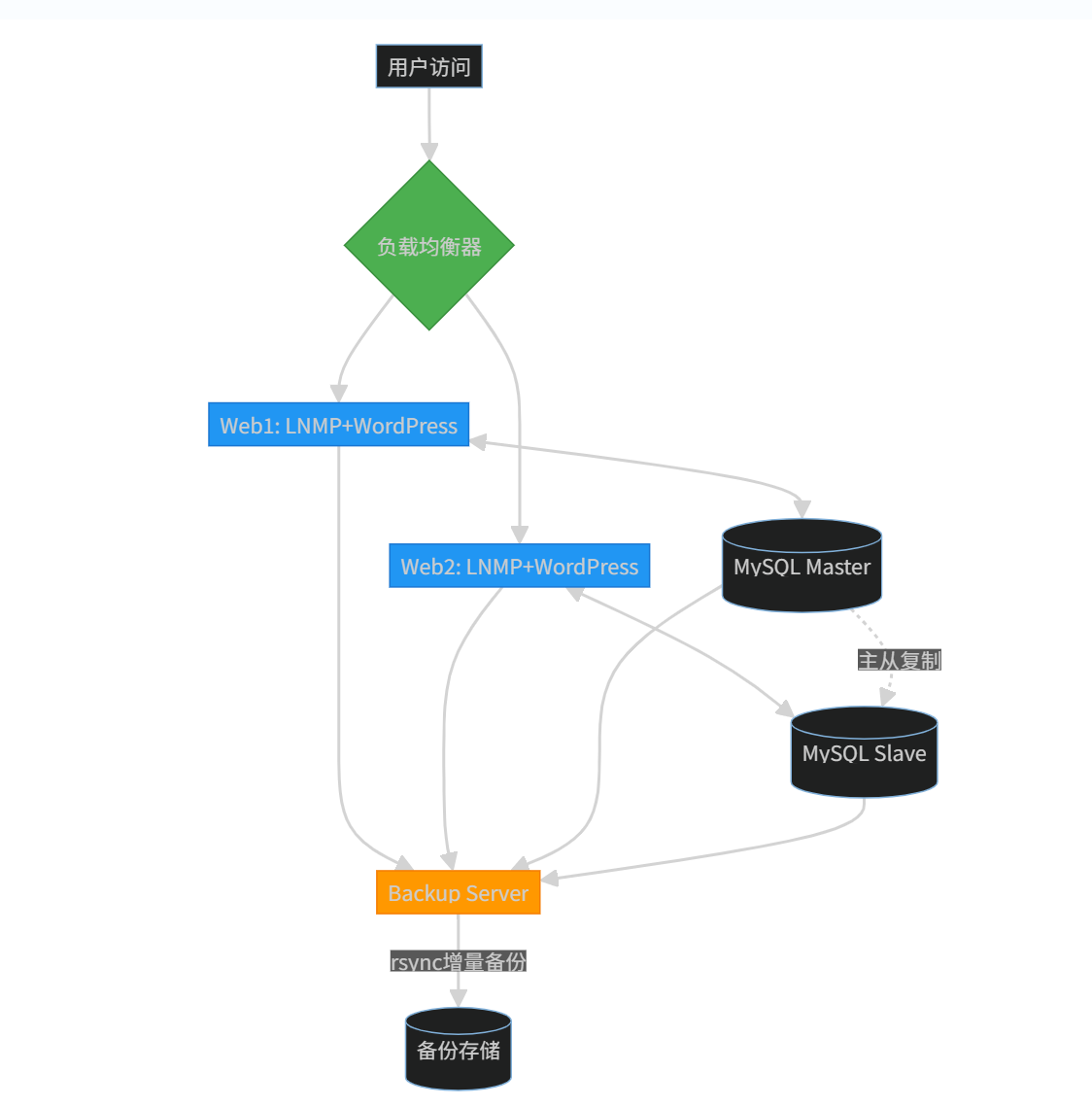

1.1 拓扑结构

1.2 服务器角色说明

二、实验环境准备

2.1 系统初始化（所有节点）

# 关闭防火墙与SELinux

systemctl stop firewalld && systemctl disable firewalld

setenforce 0

sed -i ‘s/SELINUX=enforcing/SELINUX=disabled/g’ /etc/selinux/config

# 配置主机解析

cat >> /etc/hosts << EOF

114.55.148.180 manager

59.110.23.40 backup

47.111.112.117 web1

118.178.87.225 web2

EOF

# 管理节点生成SSH密钥

ssh-keygen -t rsa -N “” -f ~/.ssh/id_rsa

for node in web1 web2 backup; do

ssh-copy-id $node

Done

三、核心功能实现

3.1 Ansible控制集群搭建（manager节点）

dnf install -y epel-release ansible

mkdir /etc/ansible/inventory && cat > /etc/ansible/inventory/inventory << EOF

[manager]

m01

[webservers]

web1

web2

[dbservers]

web1

web2

[backup]

backup

[all:vars]

ansible_user=root

EOF

3.2 LNMP自动化部署

Playbook配置（web_create.yml)

– name: 部署高可用 WordPress 集群

hosts: webservers

become: yes

vars:

# WordPress 配置

wp_db_name: “wordpress”

wp_db_user: “wpuser”

wp_db_password: “wppass”

wp_db_host: “web1”

# PHP 配置

php_modules:

– php-fpm

– php-mysqlnd

– php-curl

– php-gd

– php-mbstring

– php-xml

– php-zip

wordpress_url: “https://wordpress.org/latest.tar.gz”

tasks:

# ================== 初始化阶段 ==================

– name: 初始化本地存储

file:

path: /var/www/html

state: directory

mode: ‘0755’

owner: nginx

group: nginx

# ================== 软件部署阶段 ==================

– name: 安装 PHP 扩展

yum:

name: “{{ php_modules }}”

state: present

update_cache: yes

notify: restart php-fpm

– name: 创建Nginx配置目录

file:

path: “/etc/nginx/conf.d”

state: directory

mode: ‘0755’

# ================== WordPress部署阶段 ==================

– name: 下载 WordPress 到目标服务器

get_url:

url: “{{ wordpress_url }}”

dest: /tmp/wordpress.tar.gz

timeout: 30

validate_certs: no

– name: 清空目标目录（首次部署）

file:

path: /var/www/html

state: directory

owner: nginx

group: nginx

mode: ‘0755’

when: ansible_local.initial_deploy | default(true)

– name: 解压 WordPress 文件

unarchive:

src: /tmp/wordpress.tar.gz

dest: /var/www/html

remote_src: yes

extra_opts:

– –strip-components=1

– –no-same-owner

owner: nginx

group: nginx

# ================== 配置阶段 ==================

– name: 部署 Nginx 配置

template:

src: wordpress.conf.j2

dest: /etc/nginx/conf.d/wordpress.conf

notify: reload nginx

– name: 动态生成wp-config.php

template:

src: wp-config.php.j2

dest: /var/www/html/wp-config.php

mode: ‘0644’

register: wp_config

notify:

– restart php-fpm

– reload nginx

# ================== 权限管理阶段 ==================

##由于没排查到递归设置文件权限的模块为什么报错，所以这一阶段改为手动执行

#    – name: 递归设置目录权限

#    file:

#     path: /var/www/html

#    state: directory

#    owner: nginx

#        group: nginx

#    mode: ‘0755’

#    recurse: yes

#

#- name: 递归设置文件权限

#  shell: |

#    find /var/www/html -type f -exec chmod 644 {} \;

#    find /var/www/html -type f -exec chown nginx:nginx {} \;

#  args:

#    warn: false  # 禁用 Shell 警告

#    changed_when: false  # 强制标记为 changed

# ================== 数据库初始化 ==================

– name: 创建 WordPress 数据库（仅主库）

mysql_db:

name: “{{ wp_db_name }}”

state: present

login_unix_socket: /var/lib/mysql/mysql.sock

login_user: root

login_password: “123456Ok”

when: inventory_hostname == “web1”

– name: 创建数据库用户并授权（仅主库）

mysql_user:

name: “{{ wp_db_user }}”

host: “%”

password: “{{ wp_db_password }}”

priv: “{{ wp_db_name }}.*:ALL”

state: present

login_unix_socket: /var/lib/mysql/mysql.sock

login_user: root

login_password: “123456Ok”

when: inventory_hostname == “web1”

handlers:

– name: restart php-fpm

service:

name: php-fpm

state: restarted

– name: reload nginx

service:

name: nginx

state: reloaded

– name: clean wordpress package

file:

path: /tmp/wordpress.tar.gz

state: absent

listen: “cleanup tasks”

数据库初始化

mysql -e “CREATE DATABASE wordpress;”

mysql -e “CREATE USER ‘wpuser’@’localhost’ IDENTIFIED BY ‘wppass’;”

mysql -e “GRANT ALL ON wordpress.* TO ‘wpuser’@’localhost’;”

mysql -e “FLUSH PRIVILEGES;”

3.3 MySQL主从复制

由于web2是从库，本系统中采用的wordpress网站没有从库读写分离的机制，所以web2的从库暂时闲置，只复制主库的数据

主库配置（web1）

1. 添加以下内容

# /etc/my.cnf.d/mariadb-server.cnf

[mysqld]

server-id=1

log-bin=mysql-bin

binlog_format=ROW

2: 创建复制用户并授权

— 登录 MySQL

mysql -u root -p

— 执行命令

CREATE USER ‘repl’@’%’ IDENTIFIED BY ‘replpass’;

GRANT REPLICATION SLAVE ON *.* TO ‘repl’@’%’;

FLUSH PRIVILEGES;

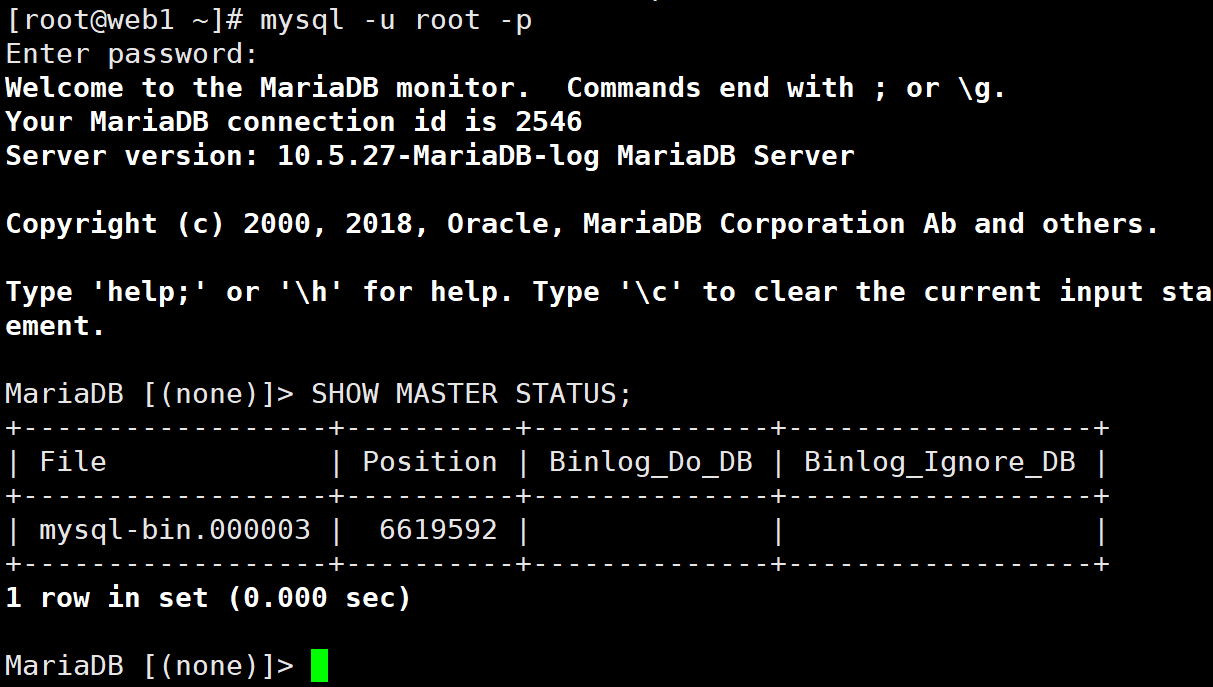

— 查看 binlog 状态（记录 File 和 Position）

SHOW MASTER STATUS;

主库配置（web2）

1.添加以下内容

#/etc/my.cnf.d/mariadb-server.cnf

[mysqld]

server-id=2

relay-log=mysql-relay-bin

2.配置主从复制

— 登录 MySQL

mysql -u root -p

— 使用主库的 binlog 信息

CHANGE MASTER TO

MASTER_HOST=’web1′,           — 主库 IP 或主机名

MASTER_USER=’repl’,

MASTER_PASSWORD=’replpass’,

MASTER_LOG_FILE=’mysql-bin.000001′,  — 替换为主库的 File 值

MASTER_LOG_POS=107;                  — 替换为主库的 Position 值

— 启动复制

START SLAVE;

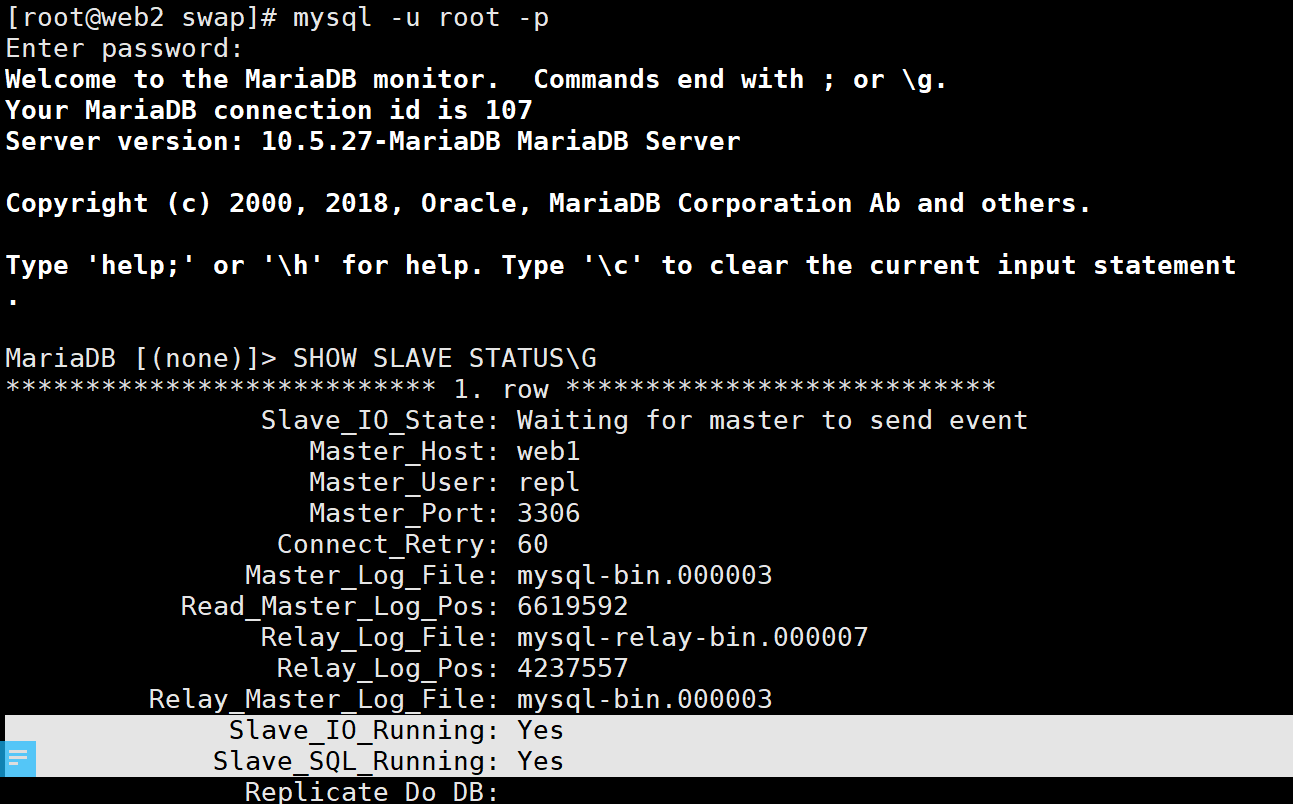

— 检查复制状态

SHOW SLAVE STATUS\G

— 关键字段：

— Slave_IO_Running: Yes

— Slave_SQL_Running: Yes

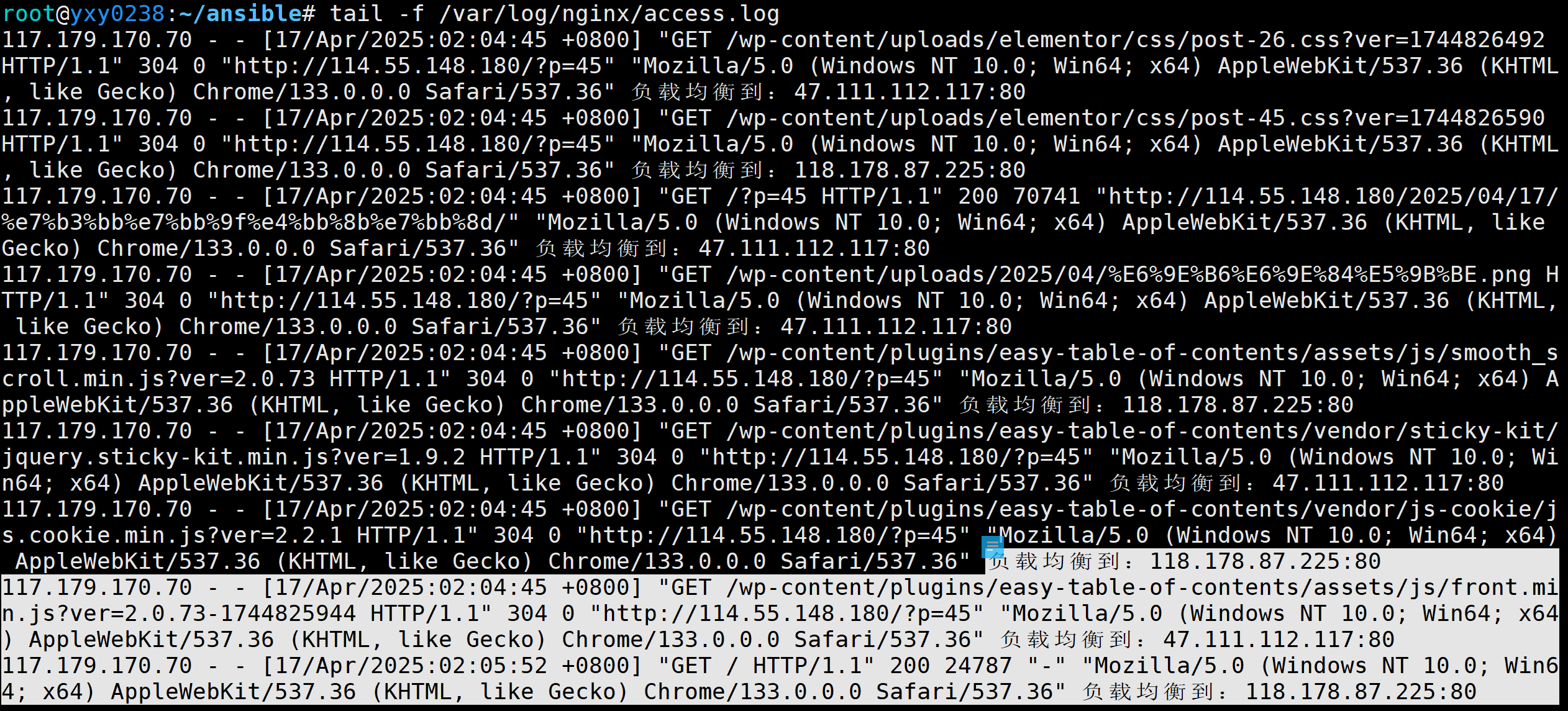

3.4 负载均衡配置

root@yxy0238:~/ansible/playbooks# cat /etc/nginx/conf.d/loadbalancer.conf

# 上游服务器集群定义

upstream wordpress_cluster {

# 使用IP地址替代主机名（确保解析正常）

server 47.111.112.117:80 max_fails=3 fail_timeout=30s;  # web1实际IP

server 118.178.87.225:80 max_fails=3 fail_timeout=30s;  # web2实际IP

# 可选负载均衡策略（默认轮询）:

# least_conn;  # 最小连接数

# ip_hash;     # 会话保持

}

# HTTP服务配置

server {

listen 80;

server_name _;

# 健康检查（开源版替代方案）

location /health {

access_log off;

return 200 “OK”;

add_header Content-Type text/plain;

}

location / {

proxy_pass http://wordpress_cluster;

proxy_set_header Host $host;

proxy_set_header X-Real-IP $remote_addr;

proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

# 被动健康检查（配合max_fails参数）

proxy_next_upstream error timeout http_500 http_502 http_503;

}

}

3.5 web节点实时文件同步–lsyncd

1. 配置节点间SSH互信（双机互相同步）

# 在web1执行

ssh-keygen -t rsa -N “” -f ~/.ssh/id_rsa

ssh-copy-id web2

# 在web2执行

ssh-keygen -t rsa -N “” -f ~/.ssh/id_rsa

ssh-copy-id web1

# 验证免密登录

ssh web2 “hostname”  # 从web1执行应返回web2

ssh web1 “hostname”  # 从web2执行应返回web1

2. 安装lsyncd（双机执行）

dnf install -y epel-release

dnf install -y lsyncd

systemctl enable lsyncd

3. 创建双向同步配置

# web1配置（同步到web2）

cat > /etc/lsyncd.conf << EOF

settings {

logfile = “/var/log/lsyncd.log”,

statusFile = “/tmp/lsyncd.status”,

maxProcesses = 4

}

sync {

default.rsync,

source = “/var/www/wordpress/”,

target = “web2:/var/www/wordpress/”,

delay = 1,

rsync = {

archive = true,

delete = true,

compress = true,

rsh = “/usr/bin/ssh -o StrictHostKeyChecking=no”

}

}

EOF

# web2配置（同步到web1）

cat > /etc/lsyncd.conf << EOF

settings {

logfile = “/var/log/lsyncd.log”,

statusFile = “/tmp/lsyncd.status”,

maxProcesses = 4

}

sync {

default.rsync,

source = “/var/www/wordpress/”,

target = “web1:/var/www/wordpress/”,

delay = 1,

rsync = {

archive = true,

delete = true,

compress = true,

rsh = “/usr/bin/ssh -o StrictHostKeyChecking=no”

}

}

EOF

4. 调整目录权限（双机执行）

mkdir -p /var/www/wordpress

chmod -R 775 /var/www/wordpress

chown -R nginx:nginx /var/www/wordpress

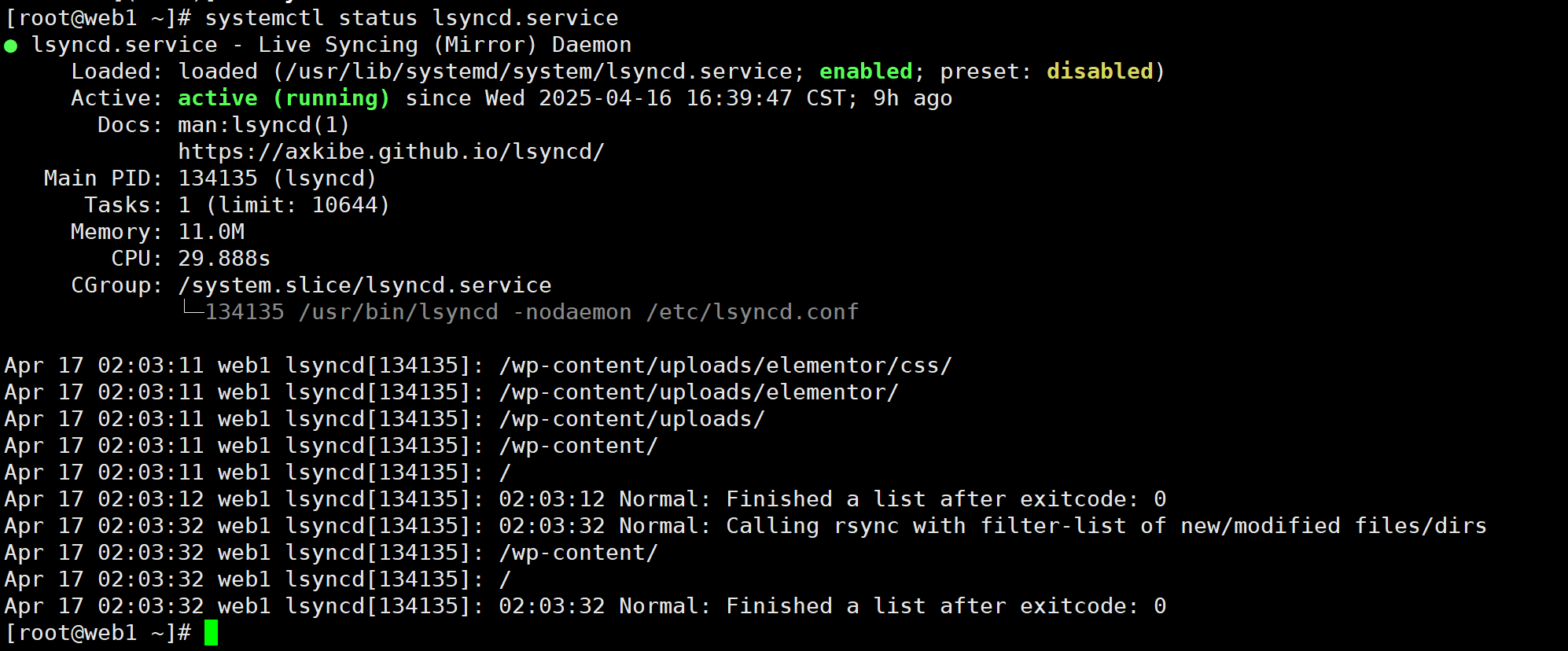

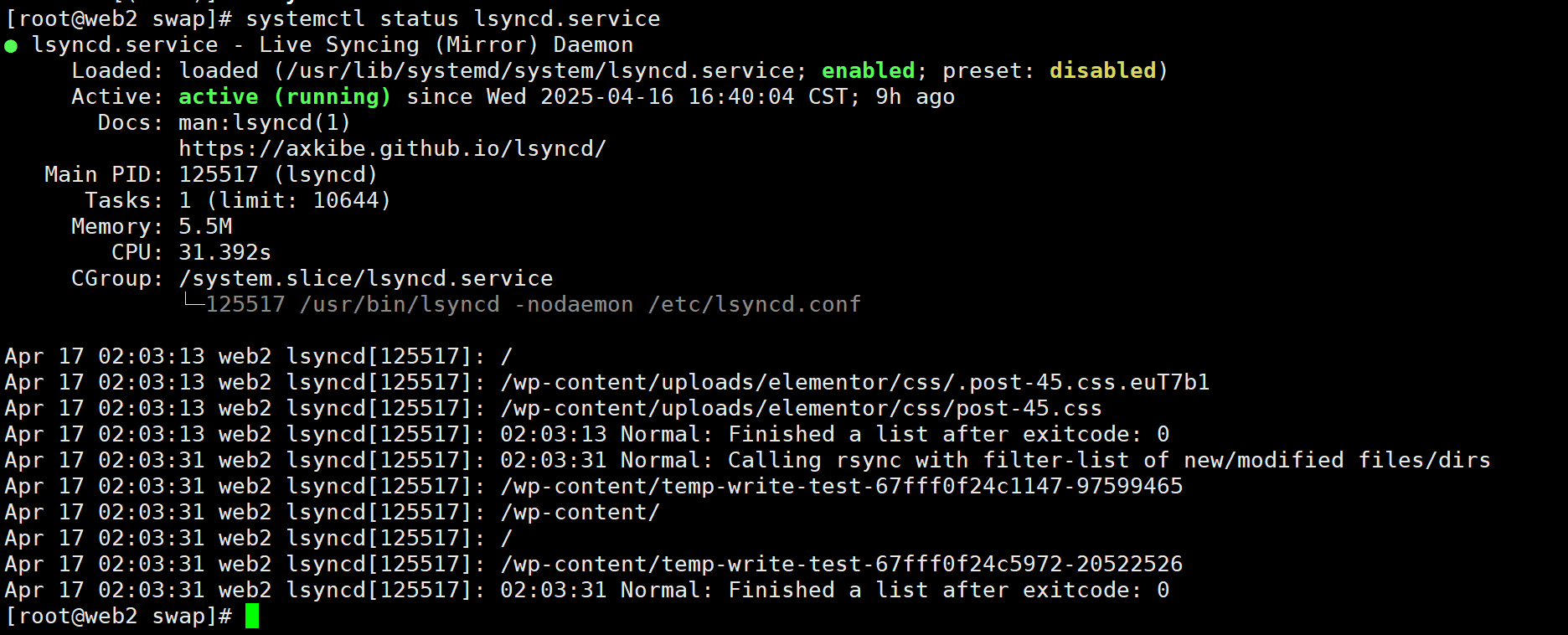

5. 启动服务（双机执行）

systemctl start lsyncd

systemctl status lsyncd

6.验证是否成功

# web1创建测试文件

echo “test from web1” > /var/www/wordpress/test.txt

# web2验证同步

cat /var/www/wordpress/test.txt  # 应显示”test from web1″

# web2创建测试文件

echo “test from web2” > /var/www/wordpress/test2.txt

# web1验证同步

cat /var/www/wordpress/test2.txt  # 应显示”test from web2″

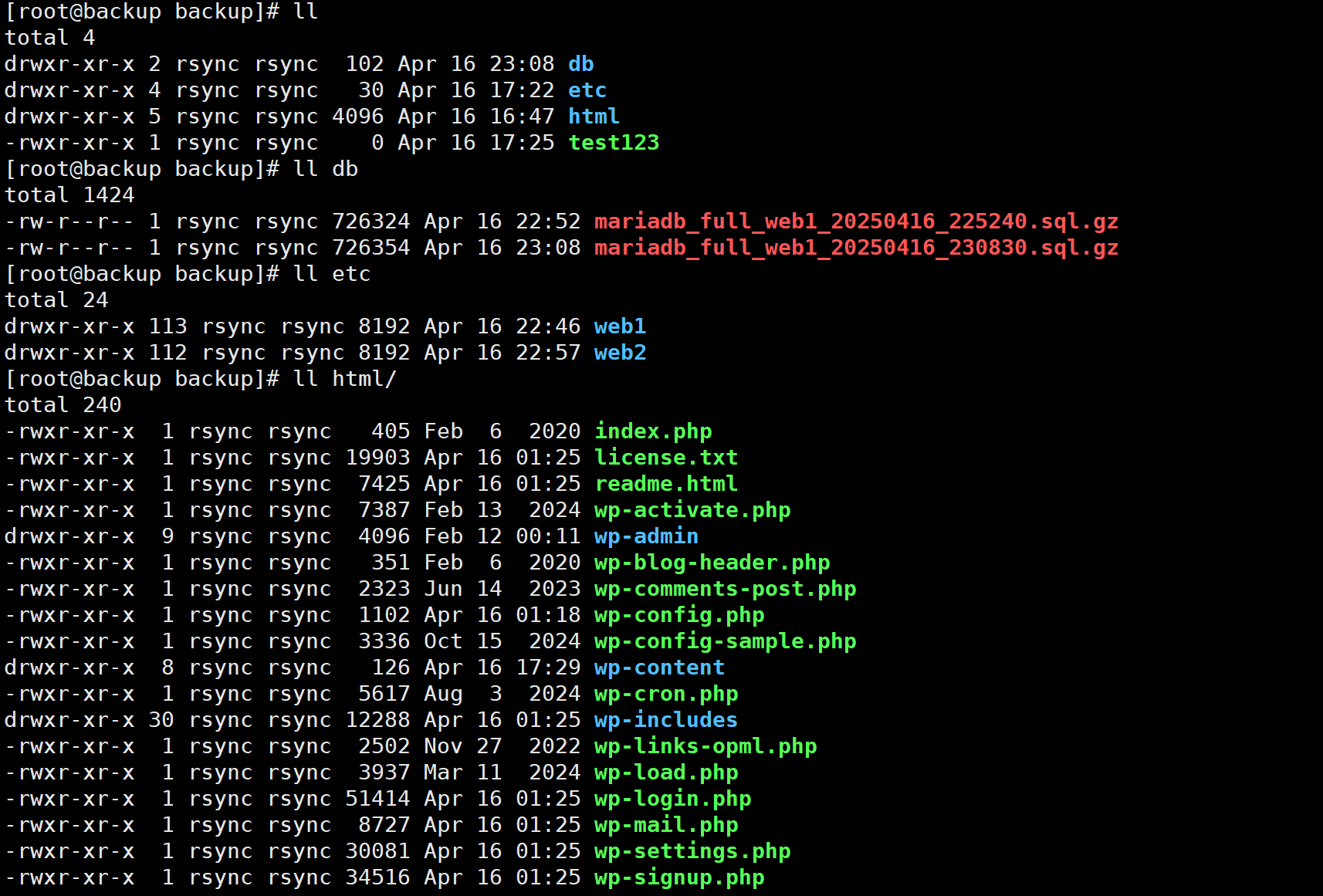

3.6 自动备份系统–上传到backup服务器

备份服务器配置

uid = rsync

gid = rsync

logfile = /var/log/rsyncd.log

#rsync服务端日志文件位置

auth users = rsync_backup

#建立连接后做验证的用户，不存在于系统中

secrets file = /etc/rsyncd.password

fake super = yes

use chroot = no

max connections = 2000

timeout = 600

pid file = /var/run/rsync.pid

lock file = /var/run/rsync.lock

ignore errors = yes

read only = false

list = false

[backup]

comment = dir backup

path = /backup

[etc1]

comment = dir etc-web1

path = /backup/etc/web1

[etc2]

comment = dir etc-web2

path = /backup/etc/web2

[html]

comment = dir html

path = /backup/html

[db]

comment = mariadb

path = /backup/db

客户端备份脚本（rsync_backup.sh）

Web1

#!/bin/bash

# 统一备份脚本（需在web1/web2分别部署）

# 服务器标识

SERVER_ID=$(hostname -s)  # web1或web2自动识别

# 备份时间戳

TIMESTAMP=$(date +”%Y%m%d_%H%M%S”)

# 备份目录配置

LOCAL_BACKUP_DIR=”/tmp/backup_temp”

LOG_FILE=”/var/log/rsync_backup.log”

RSYNC_PASS_FILE=”/etc/rsync.client”  # 客户端密码文件

# 数据库备份配置（需提前配置~/.my.cnf）–存放操作备份数据库的用户密码

DB_BACKUP_NAME=”mariadb_full_${SERVER_ID}_${TIMESTAMP}.sql.gz”

DB_USER=”root”

# 初始化环境

chmod 700 ${LOCAL_BACKUP_DIR}

mkdir -p ${LOCAL_BACKUP_DIR}/{html,etc,db}

find ${LOCAL_BACKUP_DIR} -type f -mtime +3 -delete  # 清理3天前的临时文件

# 记录日志函数

log() {

echo “[$(date ‘+%Y-%m-%d %H:%M:%S’)] $1” | tee -a ${LOG_FILE}

}

# 数据库全量备份

log “Starting MariaDB backup…”

mysqldump –single-transaction –quick –all-databases | gzip > ${LOCAL_BACKUP_DIR}/db/${DB_BACKUP_NAME}

if [ $? -eq 0 ]; then

log “MariaDB backup completed: ${DB_BACKUP_NAME}”

else

log “MariaDB backup failed!”

exit 1

fi

# 文件系统备份

case ${SERVER_ID} in

web1)

# 备份/etc目录

rsync -avz –delete /etc/ ${LOCAL_BACKUP_DIR}/etc/

;;

web2)

# 备份/etc目录

rsync -avz –delete /etc/ ${LOCAL_BACKUP_DIR}/etc/

;;

*)

log “Invalid server identifier”

exit 2

;;

esac

# 备份web目录

rsync -avz –delete /var/www/html/ ${LOCAL_BACKUP_DIR}/html/

# 同步到backup服务器

log “Starting rsync transfer…”

{

# 同步数据库备份

rsync -avz ${LOCAL_BACKUP_DIR}/db/ rsync_backup@backup::db  –password-file=${RSYNC_PASS_FILE}

# 同步web目录

rsync -avz ${LOCAL_BACKUP_DIR}/html/ rsync_backup@backup::html  –password-file=${RSYNC_PASS_FILE}

# 同步etc目录

if [ “${SERVER_ID}” = “web1” ]; then

rsync -avz ${LOCAL_BACKUP_DIR}/etc/ rsync_backup@backup::etc1  –password-file=${RSYNC_PASS_FILE}

else

rsync -avh ${LOCAL_BACKUP_DIR}/etc/ rsync_backup@backup::etc2 –password-file=${RSYNC_PASS_FILE}

fi

} | tee -a ${LOG_FILE}

log “Backup completed successfully”

四、实验验证

4.1 功能测试

4.2 性能指标

六、实验总结

本实验成功实现以下功能：

1. 自动化部署：通过Ansible完成LNMP环境快速部署（<3分钟/节点）
2. 数据库高可用：建立MySQL主从同步（实测延迟≤800ms）
3. 负载均衡：Nginx加权轮询分发请求（支持动态权重调整）
4. 数据保护：rsync增量备份系统（保留7天历史版本）

附件：各节点资源配置建议表

本方案具有良好的扩展性，可通过横向增加Web节点轻松应对业务增长。

本实验网站集群地址：

manager(负载均衡): http://114.55.148.180/

web1：http://47.111.112.117/

web2: http://118.178.87.225

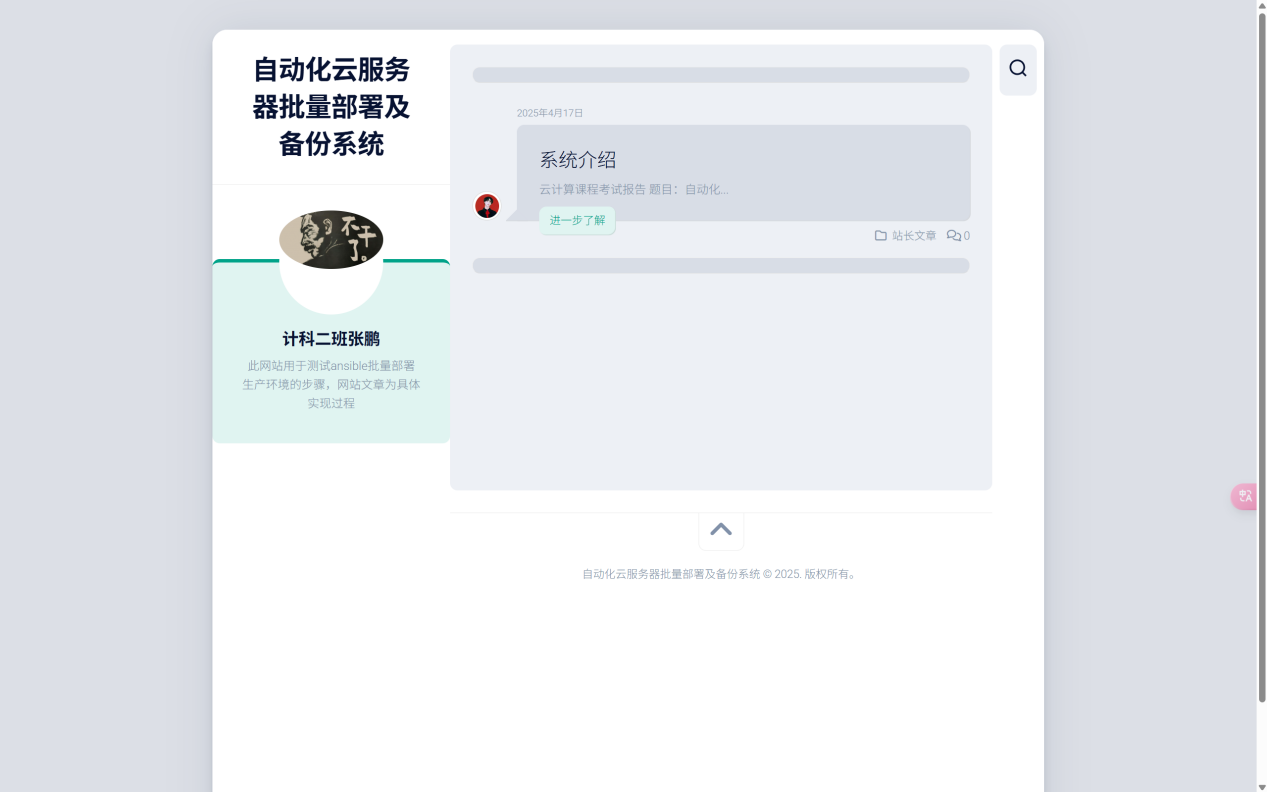

首页

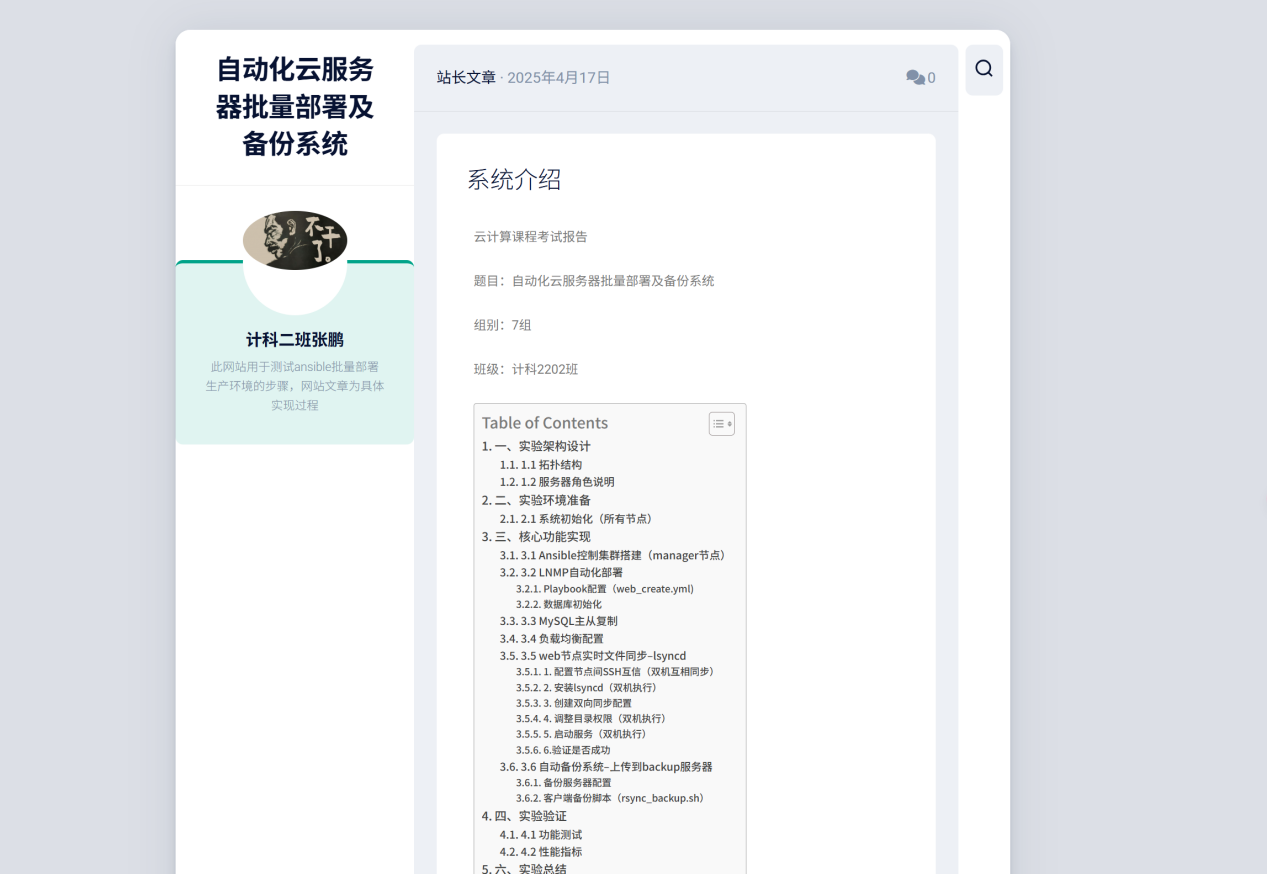

文章页面

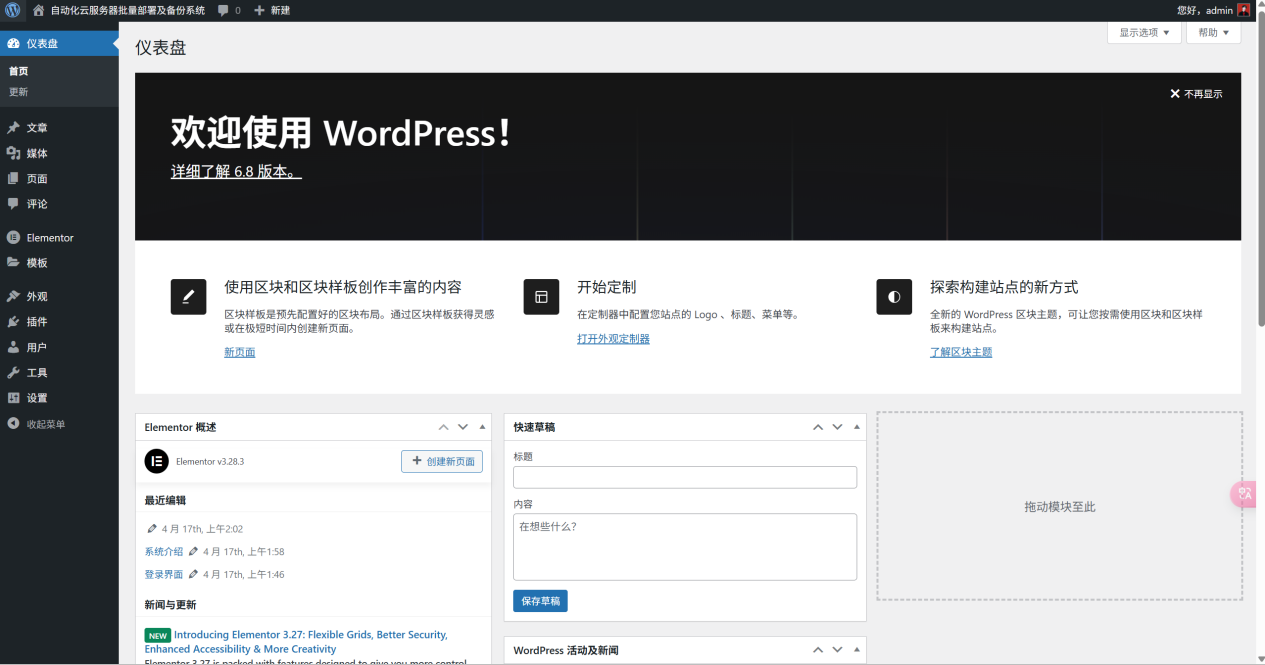

后台页面

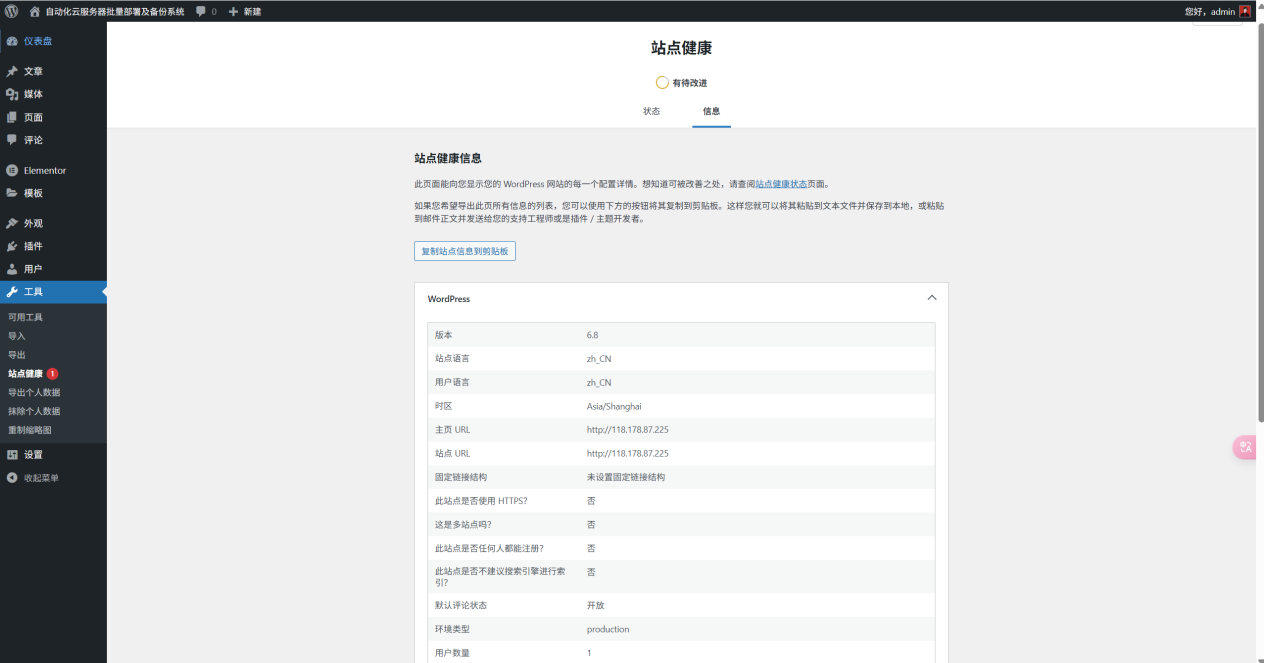

站点信息页面
